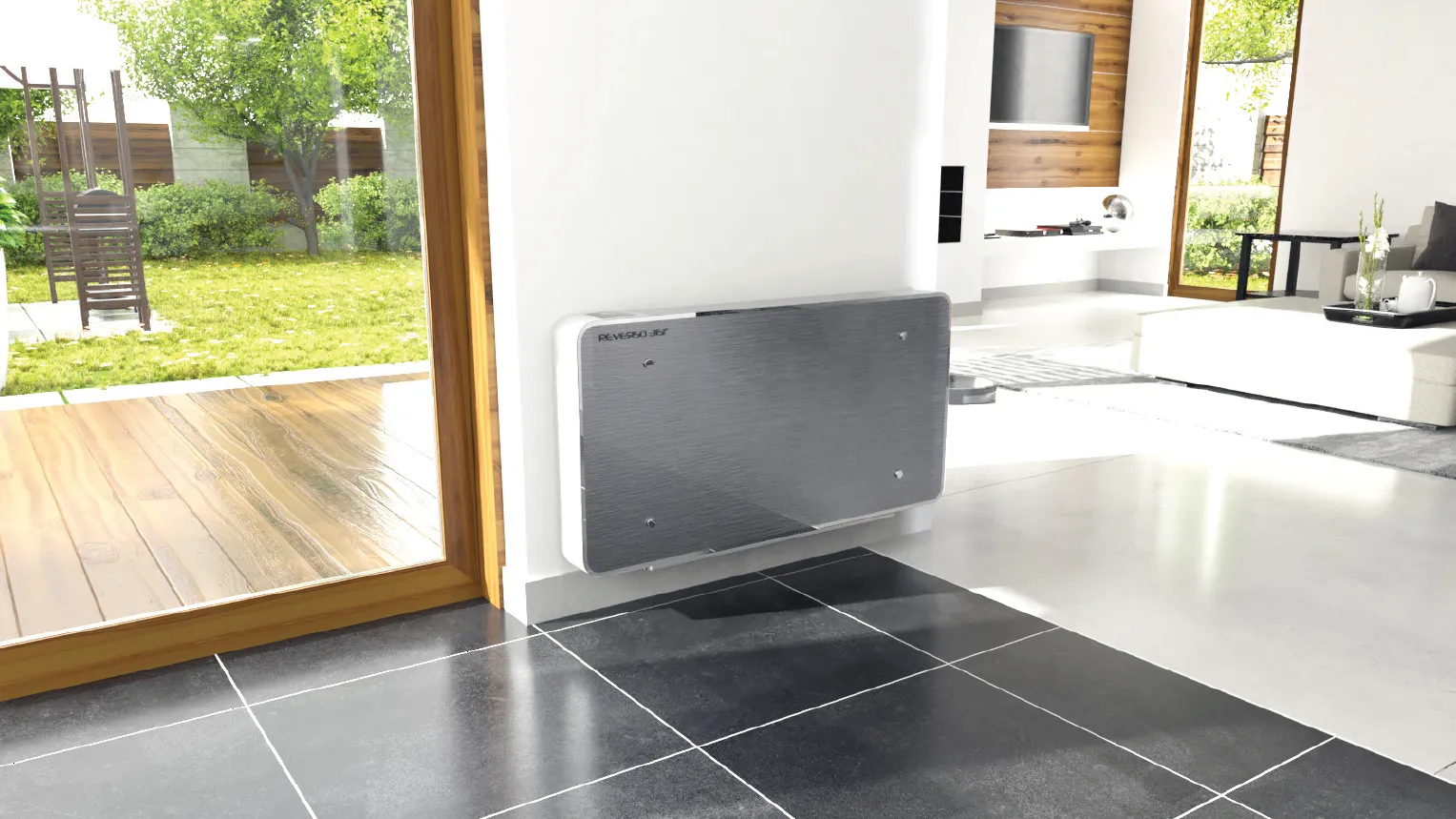

With a unique design, for cooling and heating Aerfor

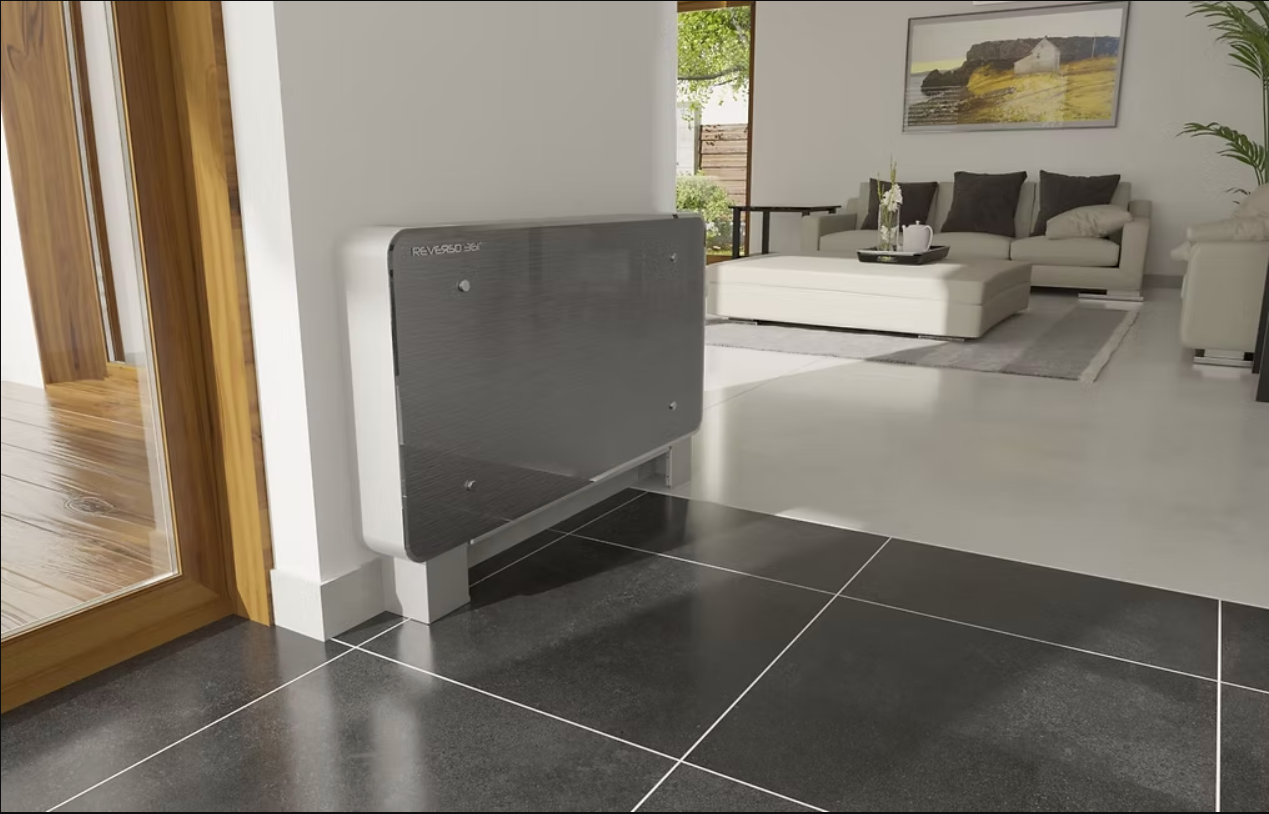

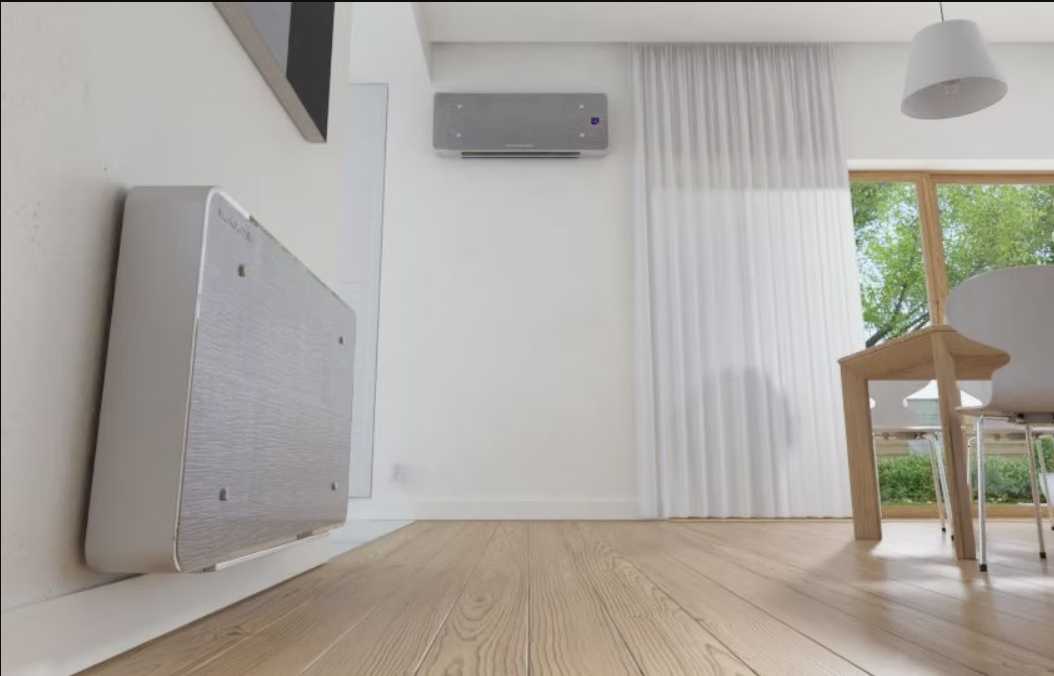

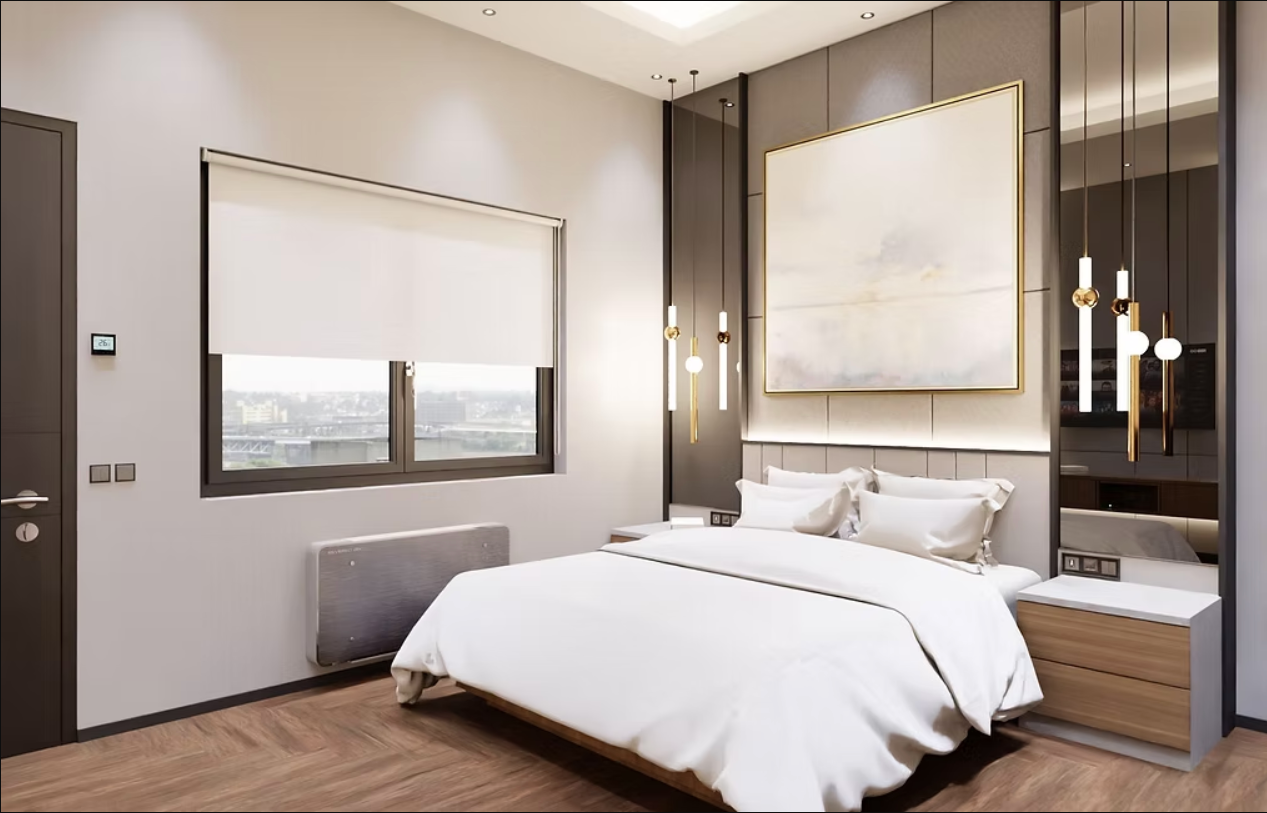

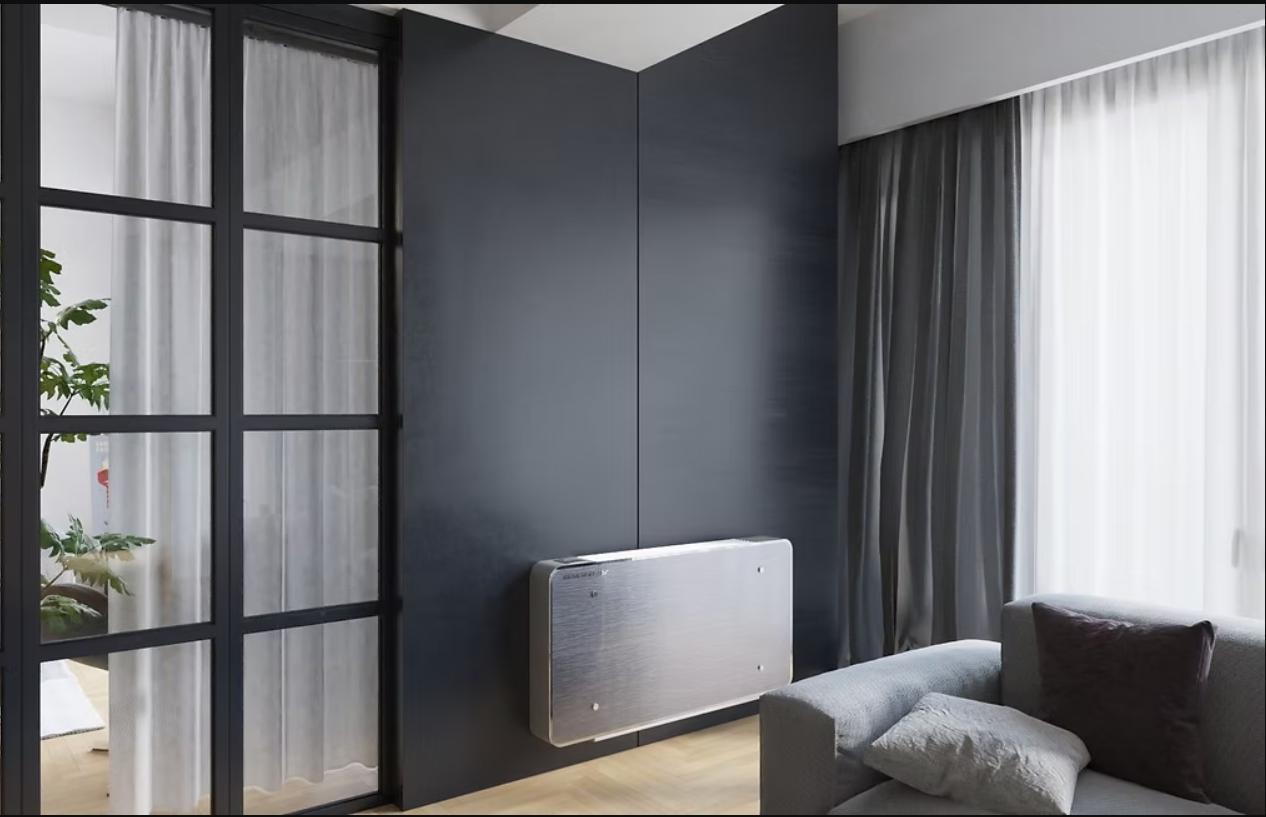

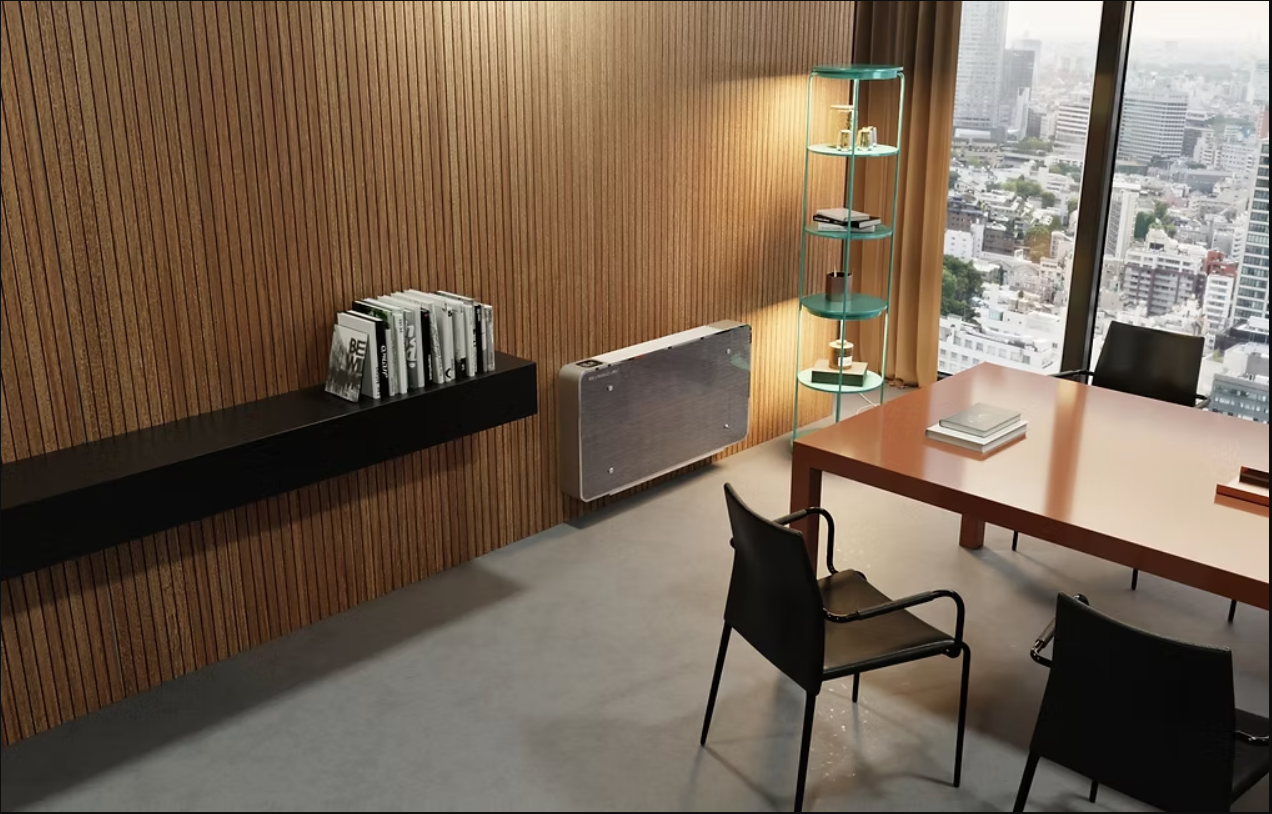

Reverso FS fan coil units are designed for floor, low wall or ceiling installation.
They offer full and efficient operation in both cooling mode in summer and heating mode in winter. They are distinguished by their original design, thanks to the specially developed front panel. Their DC inverter technology guarantees full operation in buildings of different energy classes.

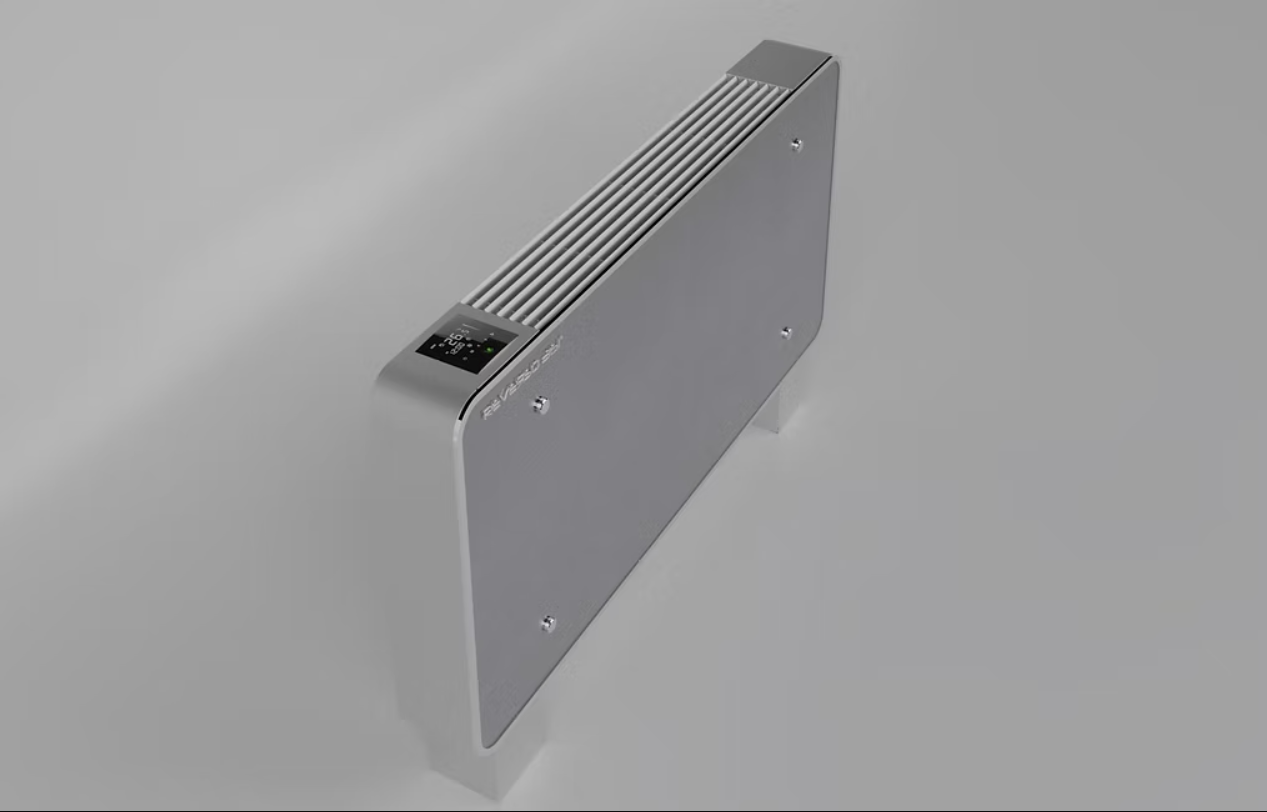

Reverso FS convectors are distinguished by their elegant silhouette and thickness of only 12 cm. Excellent for design projects.
The product is available in four sizes.
- Ultra-thin - only 12 cm;
- Minimum noise level below the hearing threshold of 20 dB (A);
- Low power consumption of only 4 watts;
- Front panel made of tempered crystal coating;
- Pleated stainless steel filters with unlimited service life;
- Tangential aluminum fan;

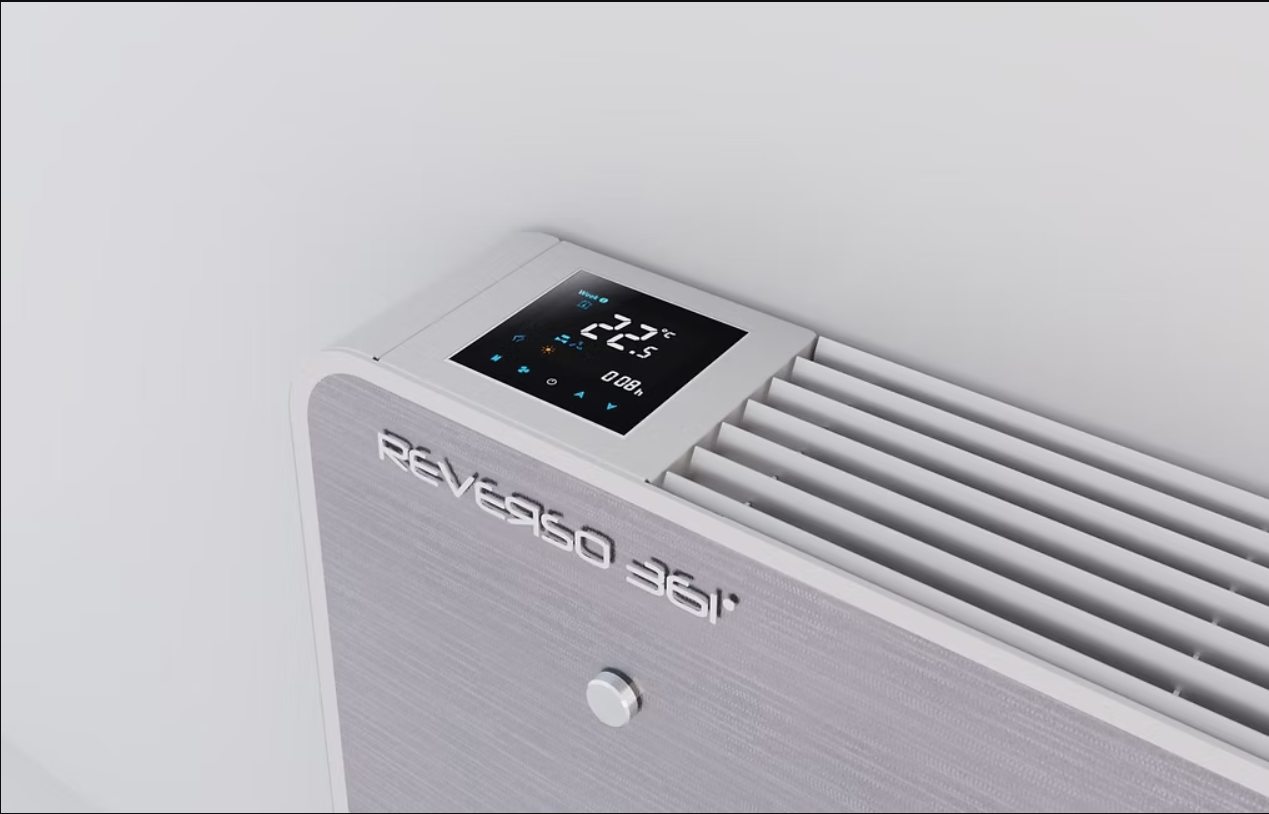

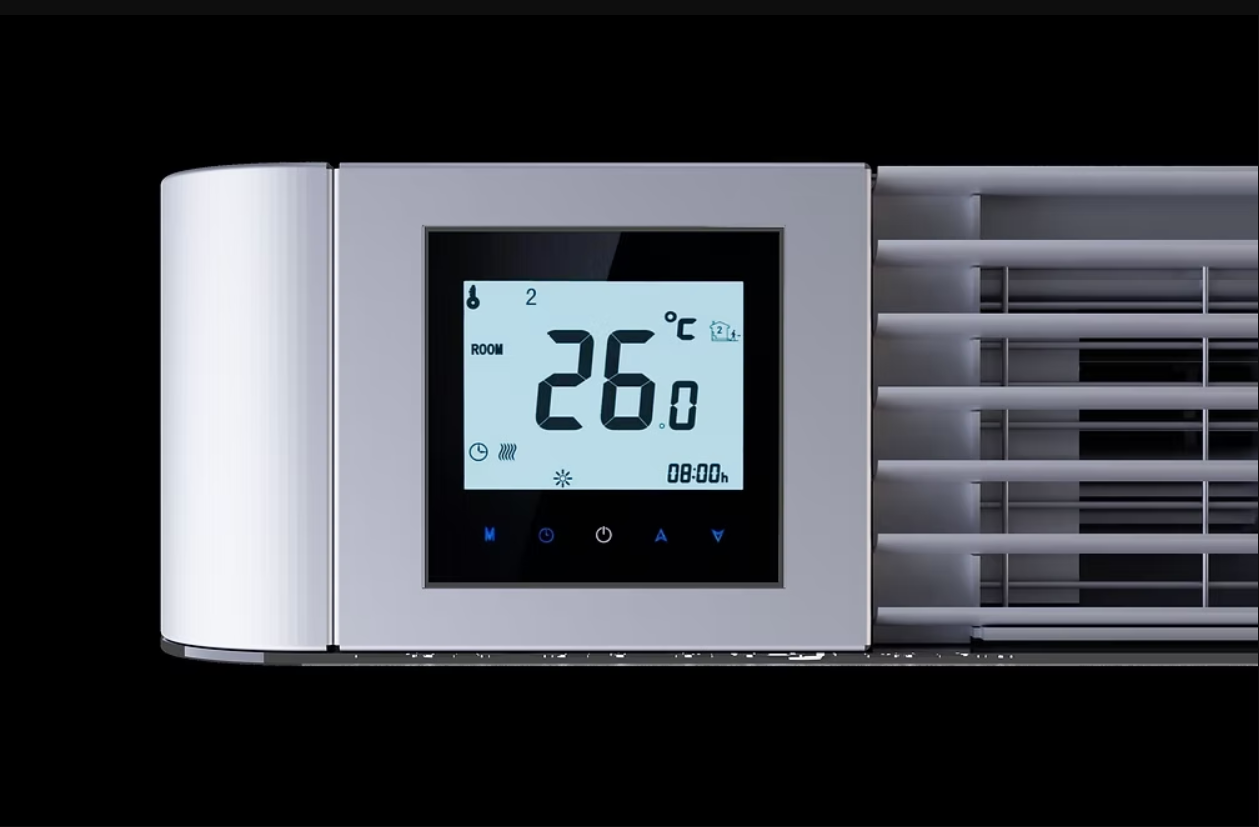

- Sensor control with Wi-Fi as standard for the entire range;

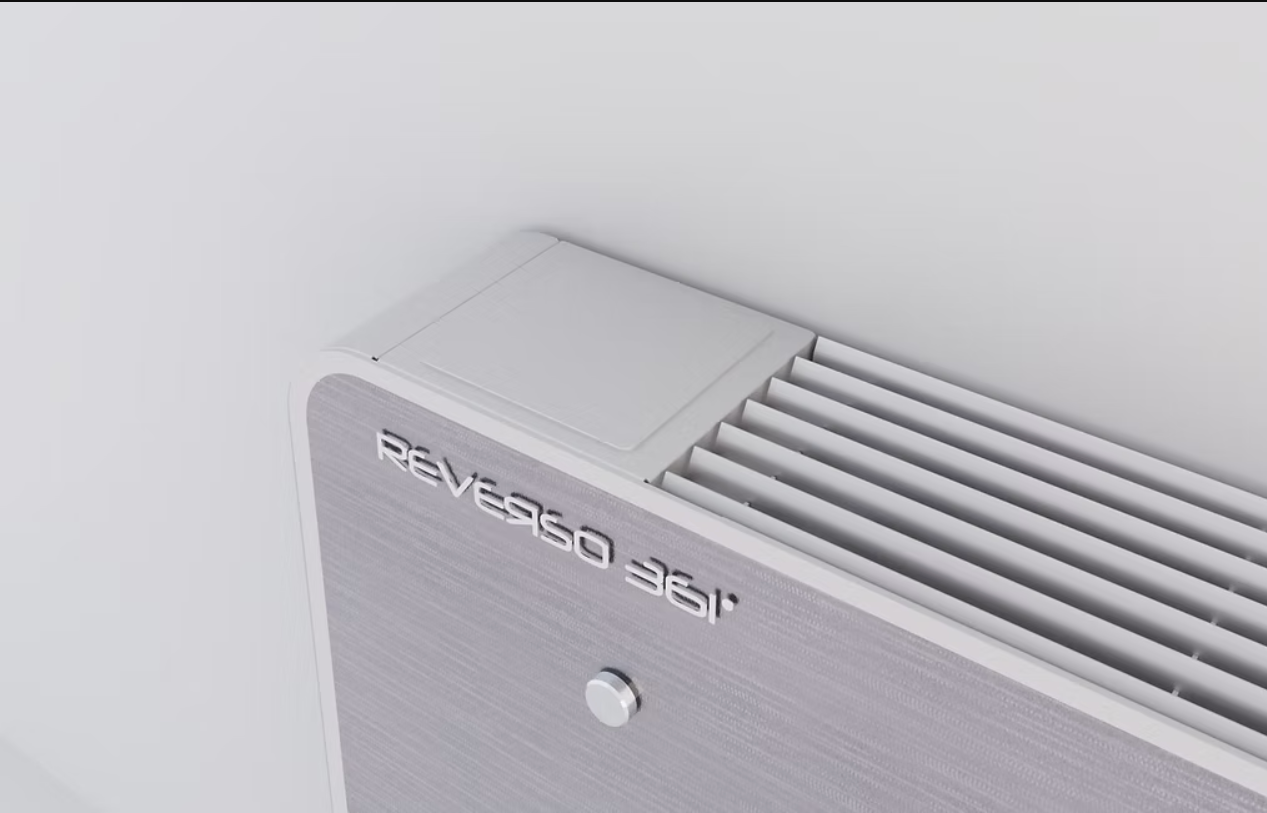

- Upper grilles made of extruded and painted aluminum.
Sizes for Fan convector Reverso FS with a thickness of 12 cm
Specifications:
|
MAXIMUM COOLING CAPACITY |
kW |
0,88 |
|
MAXIMUM HEATING CAPACITY |
kW |
1,10 |
|
MAXIMUM AIRFLOW |
m³/h |
180 |
|
ELECTRIC POWER CONSUMPTION (MIN-MAX) |
W |
3-12 |
|
MINIMUM SOUND PRESSURE |
dB(A) |
20,5 |
|
DIMENSIONS (WIDTH/HEIGHT/DEPTH) |
mm |
681/553/122 |
|
POWER SUPPLY (VOLTAGE/FREQUENCY/PHASES) |
V/Hz/n* |
220/50/1 |
Specifications:
|
MAXIMUM COOLING CAPACITY |
kW |
1,81 |
|
MAXIMUM HEATING CAPACITY |
kW |
2,40 |
|
MAXIMUM AIRFLOW |
m³/h |
315 |
|
ELECTRIC POWER CONSUMPTION (MIN-MAX) |
W |
4-13 |
|
MINIMUM SOUND PRESSURE |
dB(A) |
21,6 |
|
DIMENSIONS (WIDTH/HEIGHT/DEPTH) |
mm |
873/553/122 |
|
POWER SUPPLY (VOLTAGE/FREQUENCY/PHASES) |
V/Hz/n* |
220/50/1 |
Specifications:
|
MAXIMUM COOLING CAPACITY |
kW |
2,70 |
|
MAXIMUM HEATING CAPACITY |
kW |
3,20 |
|
MAXIMUM AIRFLOW |
m³/h |
450 |
|
ELECTRIC POWER CONSUMPTION (MIN-MAX) |
W |
5-14 |
|
MINIMUM SOUND PRESSURE |
dB(A) |
23,5 |
|
DIMENSIONS (WIDTH/HEIGHT/DEPTH) |
mm |
1065/553/122 |
|
POWER SUPPLY (VOLTAGE/FREQUENCY/PHASES) |
V/Hz/n* |
220/50/1 |
Specifications:
|
MAXIMUM COOLING CAPACITY |
kW |
3,38 |
|
MAXIMUM HEATING CAPACITY |
kW |
4,23 |
|
MAXIMUM AIRFLOW |
m³/h |
540 |
|
ELECTRIC POWER CONSUMPTION (MIN-MAX) |
W |
8-17 |
|
MINIMUM SOUND PRESSURE |
dB(A) |
21,7 |
|
DIMENSIONS (WIDTH/HEIGHT/DEPTH) |
mm |
1257/553/122 |
|
POWER SUPPLY (VOLTAGE/FREQUENCY/PHASES) |
V/Hz/n* |
220/50/1 |
