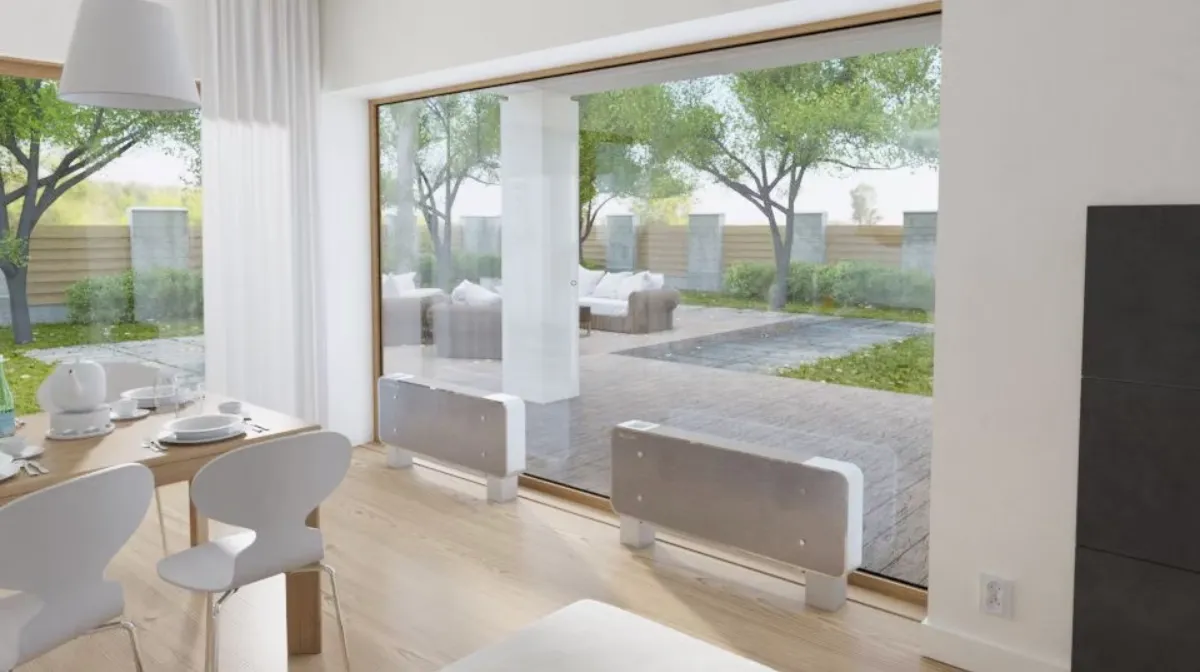

Aerfor Reverso SM double-sided fan coil

For heating and cooling. For installation in display cases Aerfor

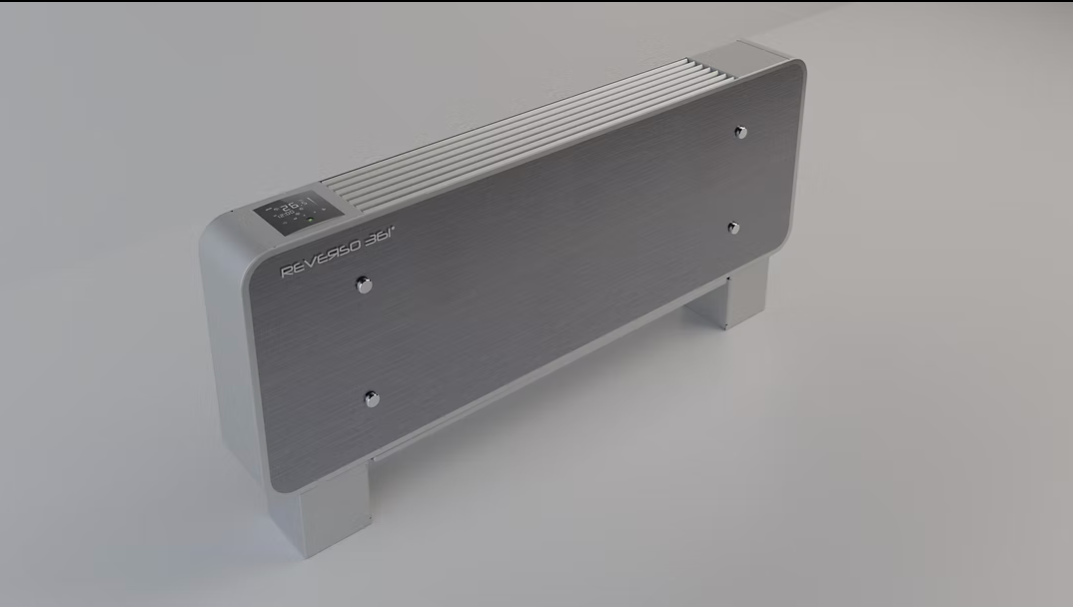

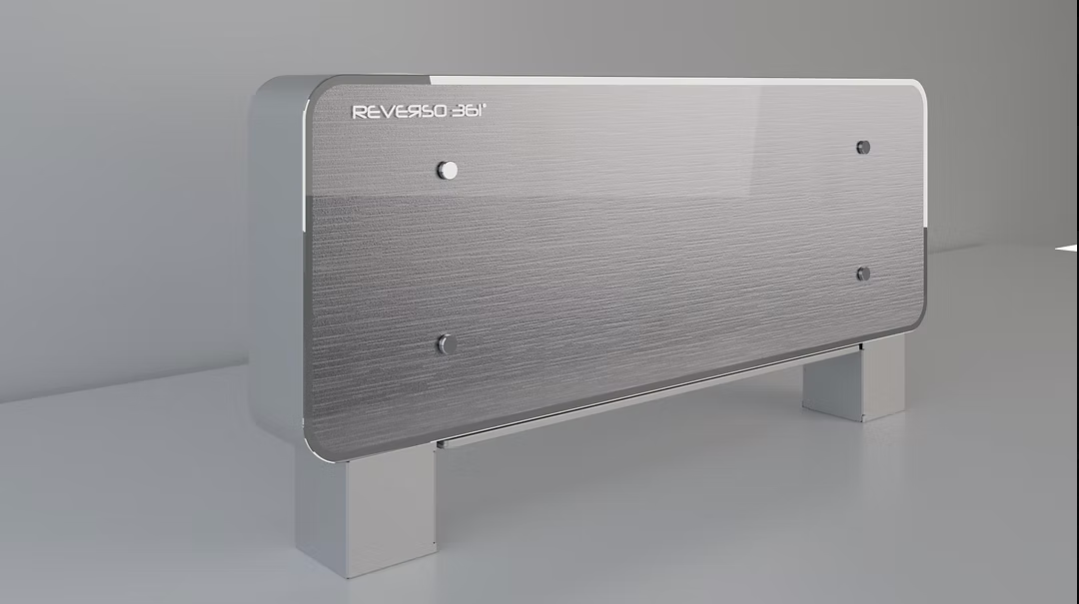

The Reverso SM water fan coil is designed for floor installation and is smaller than conventional convectors.
It stands out from all the others both in that it is available in a double-sided version, as well as with its glass front panels and its super-thin profile of only 12 cm. This makes it an exceptional designer jewel, suitable for stylish interiors in residential and office spaces.
The product is available in four sizes.

  • Ultra-thin - only 12 cm;
  • Minimum noise level below the hearing threshold of 20 dB (A);
  • DC inverter technology;
  • Low power consumption of only 4 watts;
  • Front panel made of tempered crystal coating;
  • Pleated stainless steel filters with unlimited service life;
  • Radiant panel on request;
  • Tangential aluminum fan for greater efficiency;

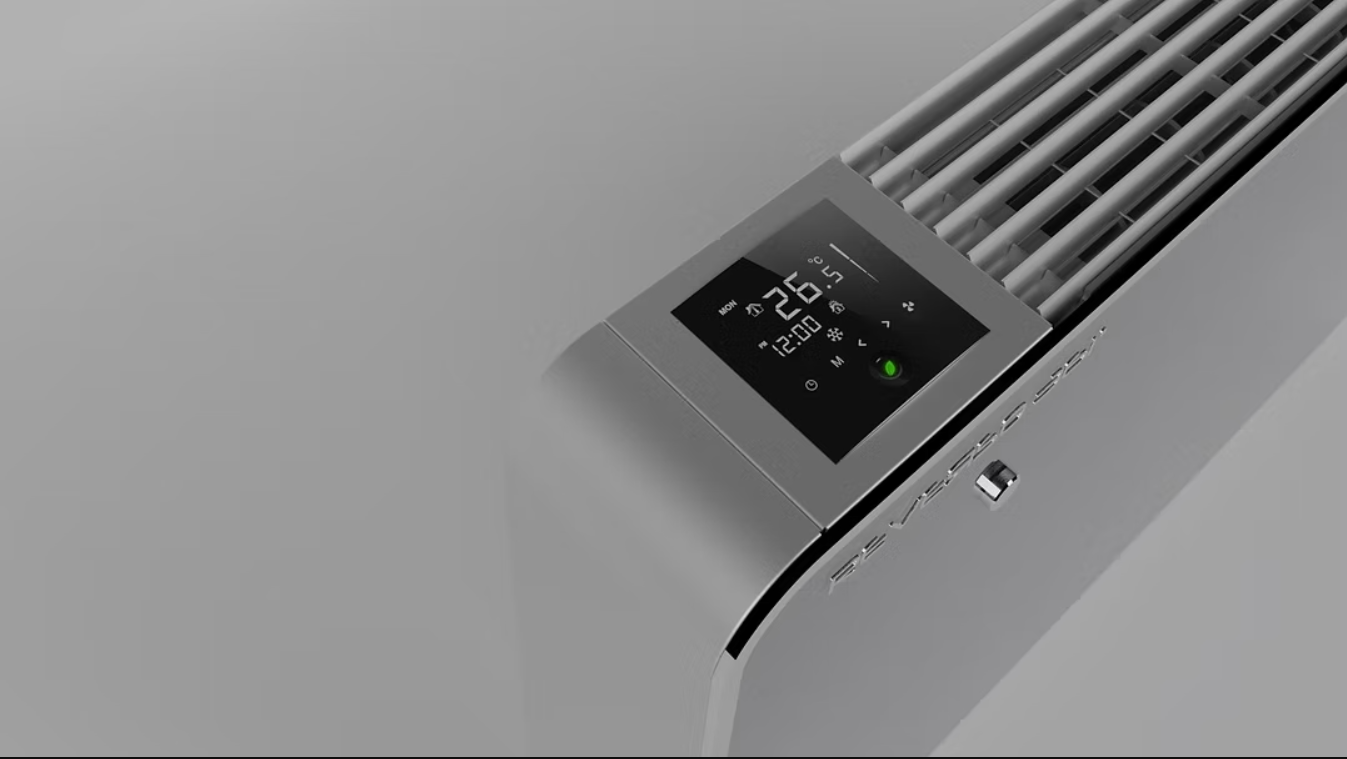

  • Built-in or wall-mounted controller;

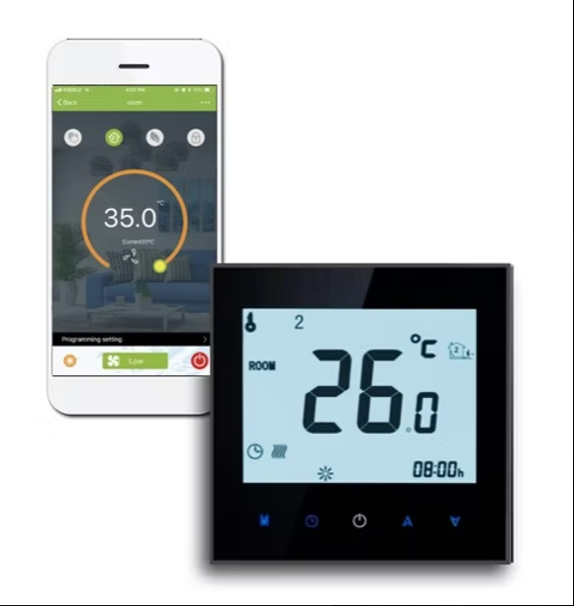

  • Built-in controls or with remote wall panel;
  • Left or right hydraulic connection available without the need for additional work.

Sizes for Reverso SM double-sided fan coil

Specifications:

MAXIMUM COOLING CAPACITY

kW

0,58

MAXIMUM HEATING CAPACITY

kW

0,84

MAXIMUM AIRFLOW

m³/h

170

ELECTRIC POWER CONSUMPTION (MIN-MAX)

W

3-12

MINIMUM SOUND PRESSURE

dB(A)

20,6

DIMENSIONS (WIDTH/HEIGHT/DEPTH)

mm

681/383/122

POWER SUPPLY (VOLTAGE/FREQUENCY/PHASES)

V/Hz/n*

220/50/1

Specifications:

MAXIMUM COOLING CAPACITY

kW

1,10

MAXIMUM HEATING CAPACITY

kW

1,62

MAXIMUM AIRFLOW

m³/h

305

ELECTRIC POWER CONSUMPTION (MIN-MAX)

W

4-13

MINIMUM SOUND PRESSURE

dB(A)

22,0

DIMENSIONS (WIDTH/HEIGHT/DEPTH)

mm

873/383/122

POWER SUPPLY (VOLTAGE/FREQUENCY/PHASES)

V/Hz/n*

220/50/1

Specifications:

MAXIMUM COOLING CAPACITY

kW

1,67

MAXIMUM HEATING CAPACITY

kW

2,41

MAXIMUM AIRFLOW

m³/h

430

ELECTRIC POWER CONSUMPTION (MIN-MAX)

W

5-14

MINIMUM SOUND PRESSURE

dB(A)

23,6

DIMENSIONS (WIDTH/HEIGHT/DEPTH)

mm

1065/383/122

POWER SUPPLY (VOLTAGE/FREQUENCY/PHASES)

V/Hz/n*

220/50/1

Specifications:

MAXIMUM COOLING CAPACITY

kW

2,39

MAXIMUM HEATING CAPACITY

kW

3,30

MAXIMUM AIRFLOW

m³/h

520

ELECTRIC POWER CONSUMPTION (MIN-MAX)

W

8-17

MINIMUM SOUND PRESSURE

dB(A)

20,8

DIMENSIONS (WIDTH/HEIGHT/DEPTH)

mm

1257/383/122

POWER SUPPLY (VOLTAGE/FREQUENCY/PHASES)

V/Hz/n*

220/50/1
