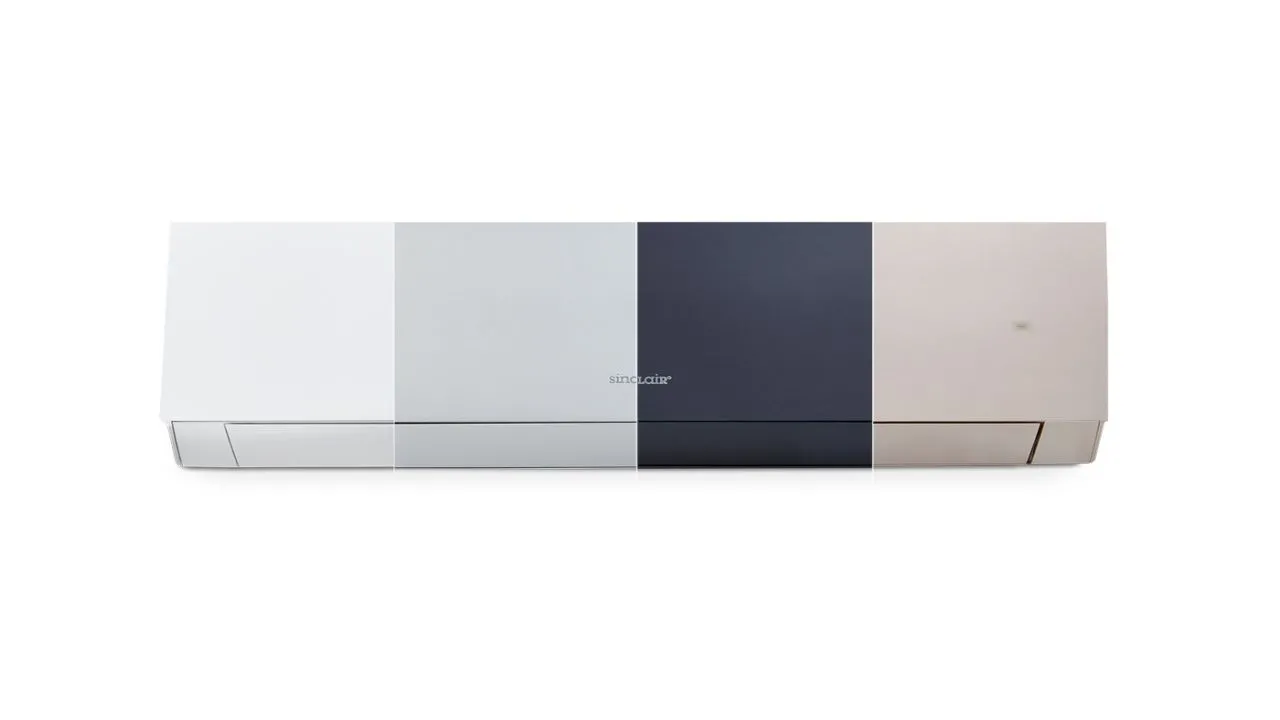

Sinclair MARVIN - Series of colorful wall-mounted air conditioners

Make an Inquiry

Energy class A+++ and superb design Sinclair

The air conditioners of the MARVIN series offer the highest level of equipment and a memorable design, emphasizing clean geometric shapes. This wall-mounted series is distinguished by high energy efficiency and class A+++, as well as the extremely useful humidity control function.

This is possible through an integrated relative humidity sensor, which allows drying the room to a precisely set value. In heating mode, it is possible to set a constant target temperature in the range of 8 to 30 degrees Celsius.

The Marvin series has a unique function for humidifying the outdoor unit, thus ensuring safe noise levels at night.

The standard equipment includes, in addition to the usual functions - Wi-Fi connection, movement of the slats in all directions, a plasma generator, a contact for blocking operation, the ability to connect a wall controller and others, also a UV-C lamp for even higher air quality.

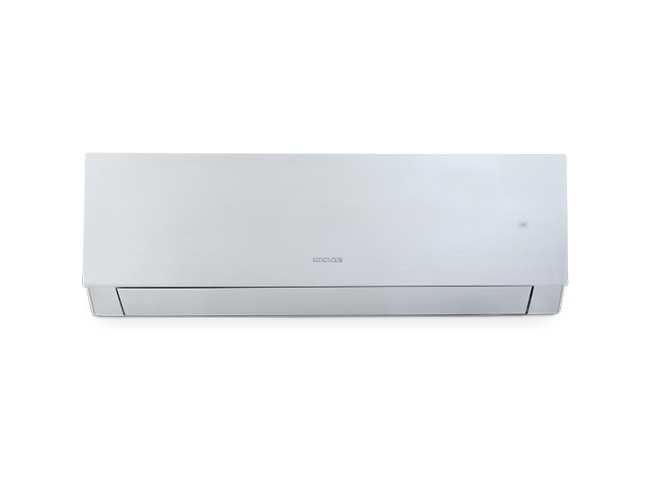

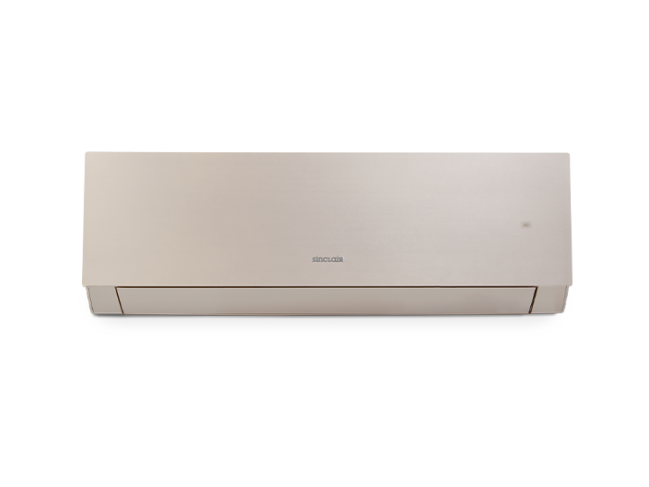

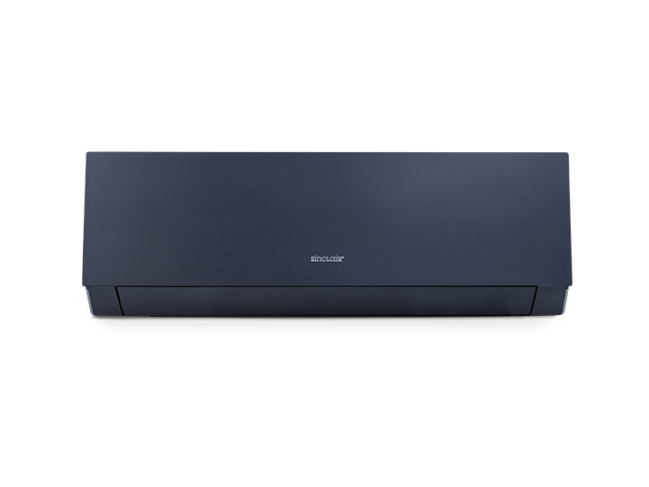

Customers combining air conditioning with photovoltaic systems will certainly appreciate the possibility of limiting the maximum input power of the entire system to 50% or 75%. MARVIN indoor units are available in four colors - white, black, silver, champagne and navy blue. By adding the SWC-02 or SWC-04 wall controller, MARVIN units can be implemented in higher-level systems using Modbus or BACnet protocols.

Sizes for MARVIN - Series of colorful wall-mounted air conditioners

Specifications:

COOLING CAPACITY

kW

2,70

HEATING CAPACITY

kW

3,00

POWER INPUT - COOLING/HEATING

kW

0,67/0,68

RECOMMENDED COOLING VOLUME

m³

40

RECOMMENDED HEATING VOLUME

m³

35

ENERGY CLASS - COOLING/HEATING

-

A+++/A++

SEER - SEASONAL ENERGY EFFICIENCY RATIO

W

8,50

SCOP - SEASONAL COEFFICIENT OF PERFORMANCE

W

4,60

SOUND PRESSURE (OUTDOOR UNIT)

dB(A)

50

SOUND PRESSURE (INDOOR UNIT)

dB(A)

19 ÷ 38

POWER SUPPLY OUTDOOR UNIT (VOLTAGE/FREQUENCY/PHASES)

V/Hz/n*

240/50/1

REFRIGERANT

-

R32

REFRIGERANT QUANTITY

kg

0,53

DIMENSIONS INDOOR UNIT (WIDTH/HEIGHT/DEPTH)

mm

837/293/200

DIMENSIONS OUTDOOR UNIT (WIDTH/HEIGHT/DEPTH)

mm

732/555/330

WEIGHT INDOOR UNIT

kg

9,5

WEIGHT OUTDOOR UNIT

kg

25

OPERATING RANGE - COOLING

°C

-15 ÷ 50

OPERATING RANGE - HEATING

°C

-25 ÷ 30

DIAMETER REFRIGERANT LIQUID PIPE/GAS PIPE

mm

6,0/9,5

Specifications:

COOLING CAPACITY

kW

3,50

HEATING CAPACITY

kW

3,80

POWER INPUT - COOLING/HEATING

kW

0,99/0,98

RECOMMENDED COOLING VOLUME

m³

65

RECOMMENDED HEATING VOLUME

m³

60

ENERGY CLASS - COOLING/HEATING

-

A++/A+

SEER - SEASONAL ENERGY EFFICIENCY RATIO

W

7,20

SCOP - SEASONAL COEFFICIENT OF PERFORMANCE

W

4,10

SOUND PRESSURE (OUTDOOR UNIT)

dB(A)

52

SOUND PRESSURE (INDOOR UNIT)

dB(A)

19 ÷ 41

POWER SUPPLY OUTDOOR UNIT (VOLTAGE/FREQUENCY/PHASES)

V/Hz/n*

240/50/1

REFRIGERANT

-

R32

REFRIGERANT QUANTITY

kg

0,57

DIMENSIONS INDOOR UNIT (WIDTH/HEIGHT/DEPTH)

mm

837/29,/200

DIMENSIONS OUTDOOR UNIT (WIDTH/HEIGHT/DEPTH)

mm

732/555/330

WEIGHT INDOOR UNIT

kg

9,5

WEIGHT OUTDOOR UNIT

kg

25,5

OPERATING RANGE - COOLING

°C

-15 ÷ 50

OPERATING RANGE - HEATING

°C

-25 ÷ 30

DIAMETER REFRIGERANT LIQUID PIPE/GAS PIPE

mm

6,0/9,5

Specifications:

COOLING CAPACITY

kW

5,30

HEATING CAPACITY

kW

5,40

POWER INPUT - COOLING/HEATING

kW

1,53/1,39

RECOMMENDED COOLING VOLUME

m³

115

RECOMMENDED HEATING VOLUME

m³

95

ENERGY CLASS - COOLING/HEATING

-

A++/A+

SEER - SEASONAL ENERGY EFFICIENCY RATIO

W

7,30

SCOP - SEASONAL COEFFICIENT OF PERFORMANCE

W

4,20

SOUND PRESSURE (OUTDOOR UNIT)

dB(A)

56

SOUND PRESSURE (INDOOR UNIT)

dB(A)

23 ÷ 45

POWER SUPPLY OUTDOOR UNIT (VOLTAGE/FREQUENCY/PHASES)

V/Hz/n*

240/50/1

REFRIGERANT

-

R32

REFRIGERANT QUANTITY

kg

0,85

DIMENSIONS INDOOR UNIT (WIDTH/HEIGHT/DEPTH)

mm

993/311/222

DIMENSIONS OUTDOOR UNIT (WIDTH/HEIGHT/DEPTH)

mm

802/555/302

WEIGHT INDOOR UNIT

kg

12,5

WEIGHT OUTDOOR UNIT

kg

31,5

OPERATING RANGE - COOLING

°C

-15 ÷ 50

OPERATING RANGE - HEATING

°C

-25 ÷ 30

DIAMETER REFRIGERANT LIQUID PIPE/GAS PIPE

mm

6,0/12,0

Specifications:

COOLING CAPACITY

kW

7,10

HEATING CAPACITY

kW

7,30

POWER INPUT - COOLING/HEATING

kW

2,03/1,87

RECOMMENDED COOLING VOLUME

m³

135

RECOMMENDED HEATING VOLUME

m³

125

ENERGY CLASS - COOLING/HEATING

-

A++/A+

SEER - SEASONAL ENERGY EFFICIENCY RATIO

W

7,00

SCOP - SEASONAL COEFFICIENT OF PERFORMANCE

W

4,30

SOUND PRESSURE (OUTDOOR UNIT)

dB(A)

59

SOUND PRESSURE (INDOOR UNIT)

dB(A)

27 ÷ 48

POWER SUPPLY OUTDOOR UNIT (VOLTAGE/FREQUENCY/PHASES)

V/Hz/n*

240/50/1

REFRIGERANT

-

R32

REFRIGERANT QUANTITY

kg

1,40

DIMENSIONS INDOOR UNIT (WIDTH/HEIGHT/DEPTH)

mm

993/311/222

DIMENSIONS OUTDOOR UNIT (WIDTH/HEIGHT/DEPTH)

mm

958/660/402

WEIGHT INDOOR UNIT

kg

17,5

WEIGHT OUTDOOR UNIT

kg

53,5

OPERATING RANGE - COOLING

°C

-15 ÷ 43

OPERATING RANGE - HEATING

°C

-22 ÷ 24

DIAMETER REFRIGERANT LIQUID PIPE/GAS PIPE

mm

6,0/16,0

Files for MARVIN - Series of colorful wall-mounted air conditioners

User Manual MARVIN SERIES_EN.pdf (requires registration)
Service Manual MARVIN SERIES_EN.pdf (requires registration)
